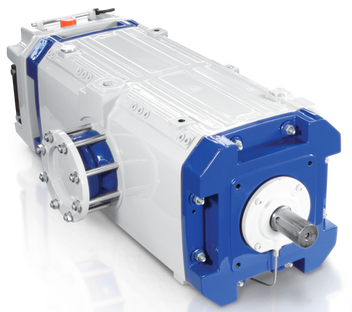

VacuStar W 900 / 1300 / 1600 Water Cooled Compressor - Vacuum Pumps
The water cooled - oil lubricated W series is available in 3 sizes with volume flow of up to 1600 m³/h / 942 cfm.
The W series was developed specifically for the high requirements municipal vacuum trucks and combination trucks (combined suction and water jetting).
The W series was developed specifically for the high requirements municipal vacuum trucks and combination trucks (combined suction and water jetting).
|
Features: » High quality compressor vacuum-pumps for higher suction levels and greater suction power. » Unique and robust design guaranteeing long lasting performance. » Compact and light-weight compressor vacuum-pumps for higher payload. » The integrated cell aeration system reducing discharge temperature. » Cooler operation resulting in longer life for vanes, bearings and casings. |
» Higher suction capacity; Option of continuous 100 mbar / 27 HG“( 90 % vacuum) operation* » 4 point mounting at either top or bottom of the housing. » Option of hydraulic drive kit. » Compact dimensions » Low power requirement, giving efficient, economic operation » ATEX temperature-class 3* * with integrated cell aeration system. |
|
|

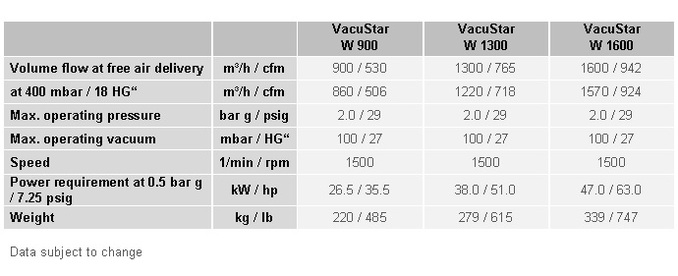

Technical Data:
